Start with these: the chimney top, open wire splices in the basement, rusted galvanized water pipe, a damaged shingle, trees on the roof and a rusted plumbing vent. The attic was seen from the opening only. The one DIY: clean out the dryer vent.
Fix these before you close
At the top of the chimney, the mortar has broken out of the top rows of brick and some bricks are cracked.
Water that gets in here works down into the chimney.
Hire a mason or chimney contractor to rebuild the top courses and the crown.

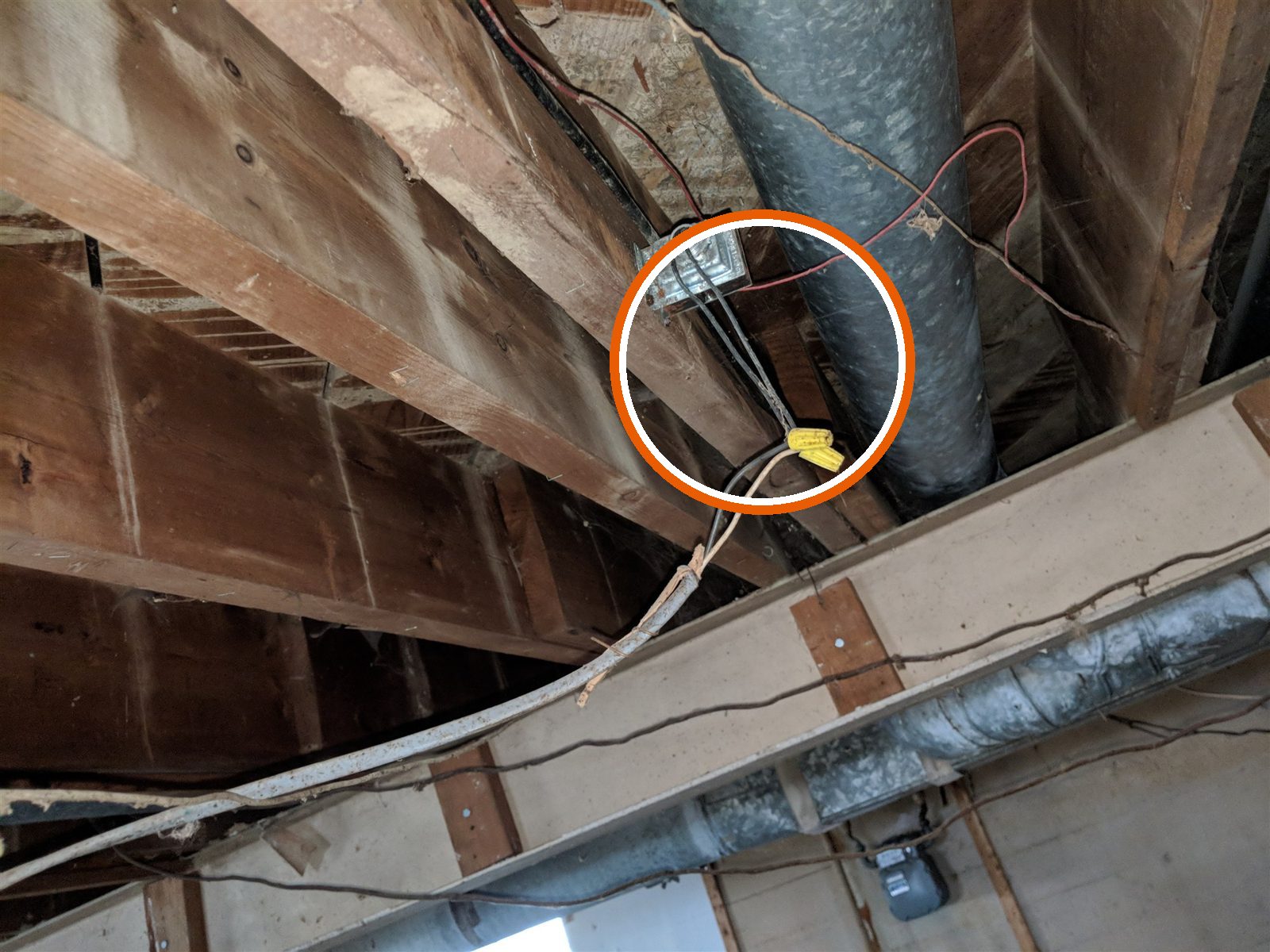

A metal junction box in the basement ceiling has no cover. The splices sit outside the box, with the wire nuts hanging in the open below the joists.
Splices belong inside a covered box so a loose connection can't touch wood or a hand.
Hire a licensed electrician to move the connections into a covered box and fasten the cable.

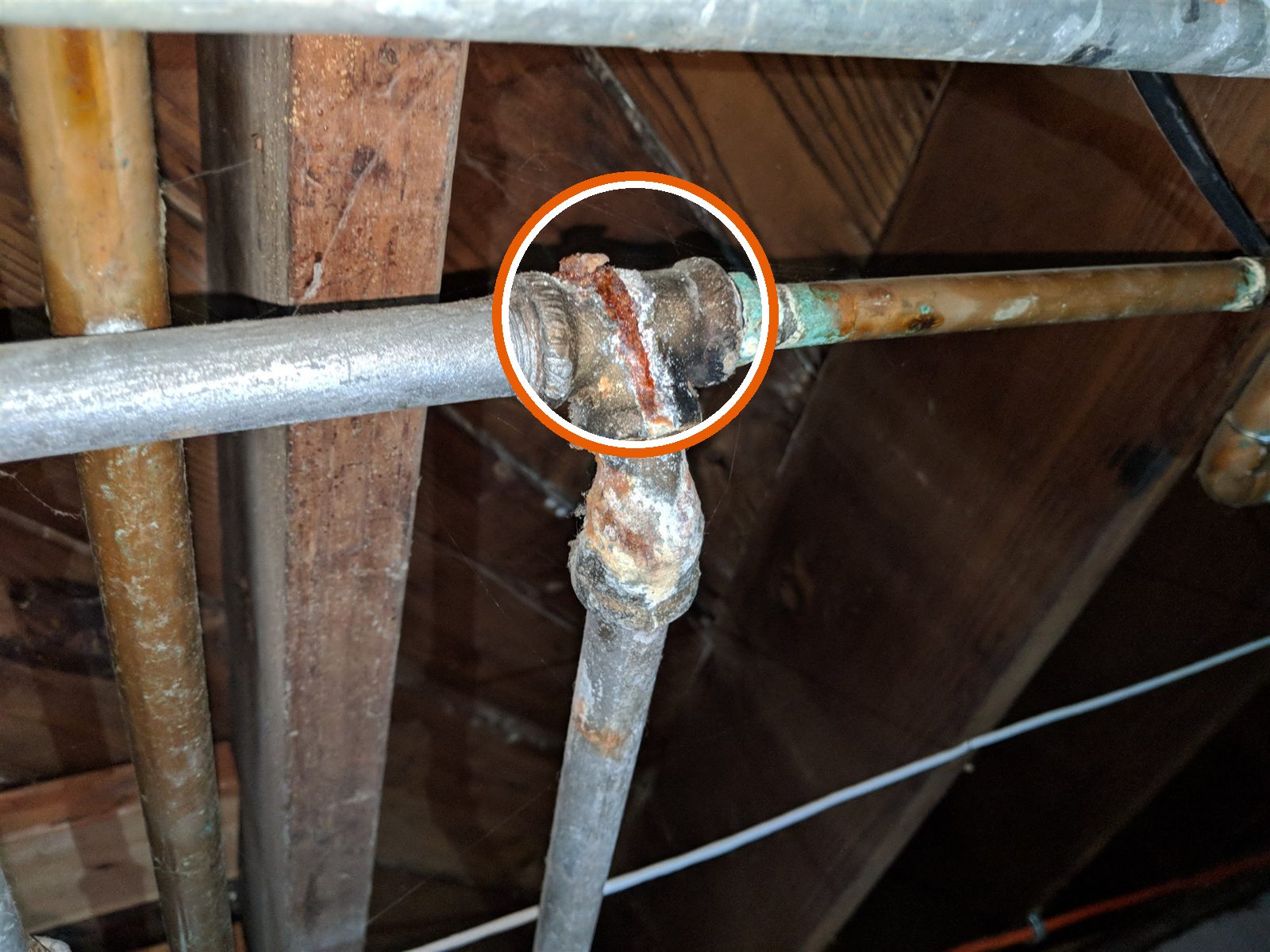

Part of the water supply is galvanized steel. The fittings are rusted and swollen, with copper spliced in at some joints.
Galvanized pipe rusts from the inside, which cuts water flow. The rusted fittings are where leaks start.
Hire a licensed plumber to replace the galvanized supply piping.

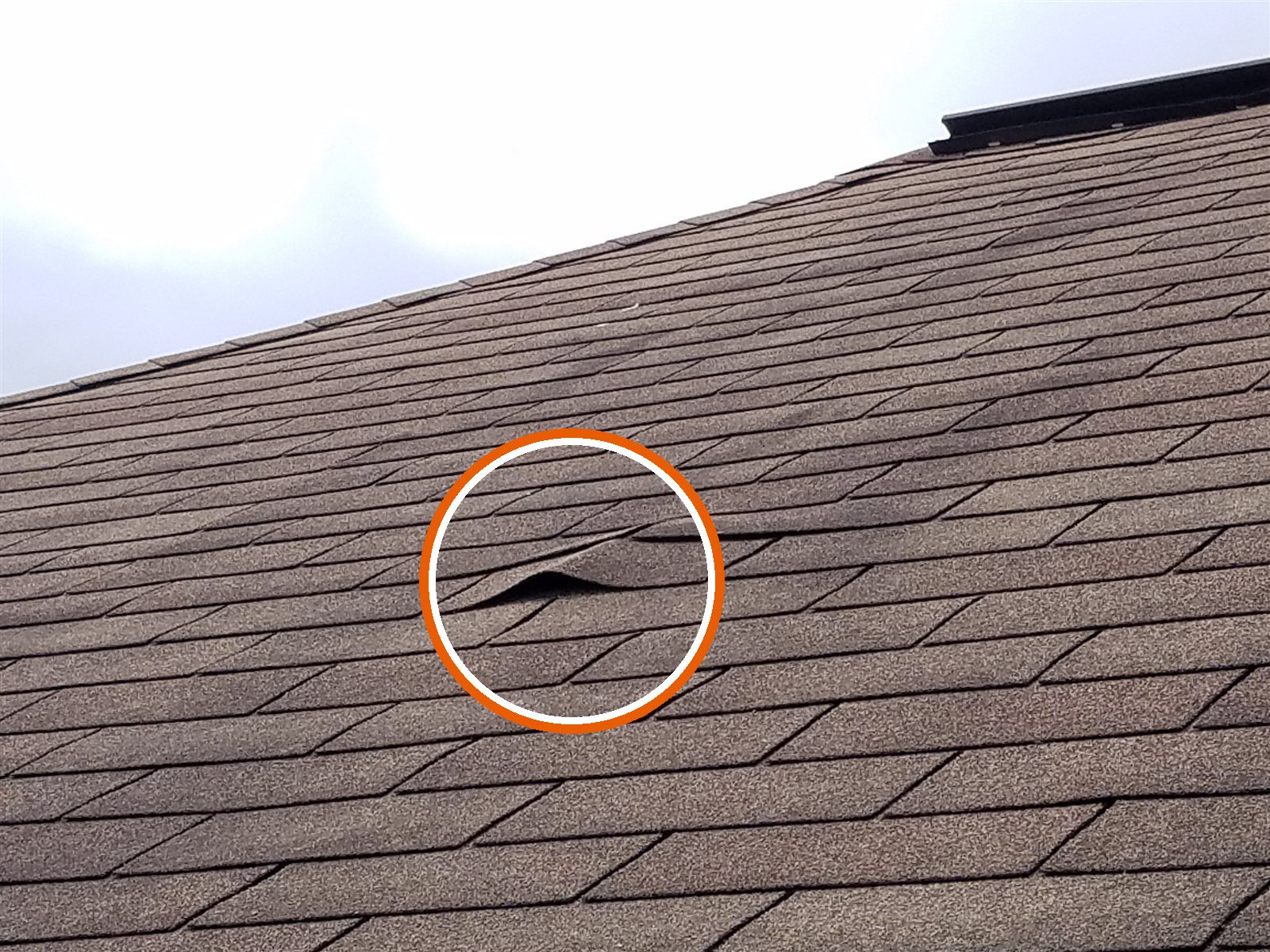

One shingle is lifted and creased across the tab, so it no longer lies flat.
A creased tab lets wind and water get under it, and the next storm can tear it off.
Hire a licensed roofer to replace the damaged shingle and check the rest of the slope.

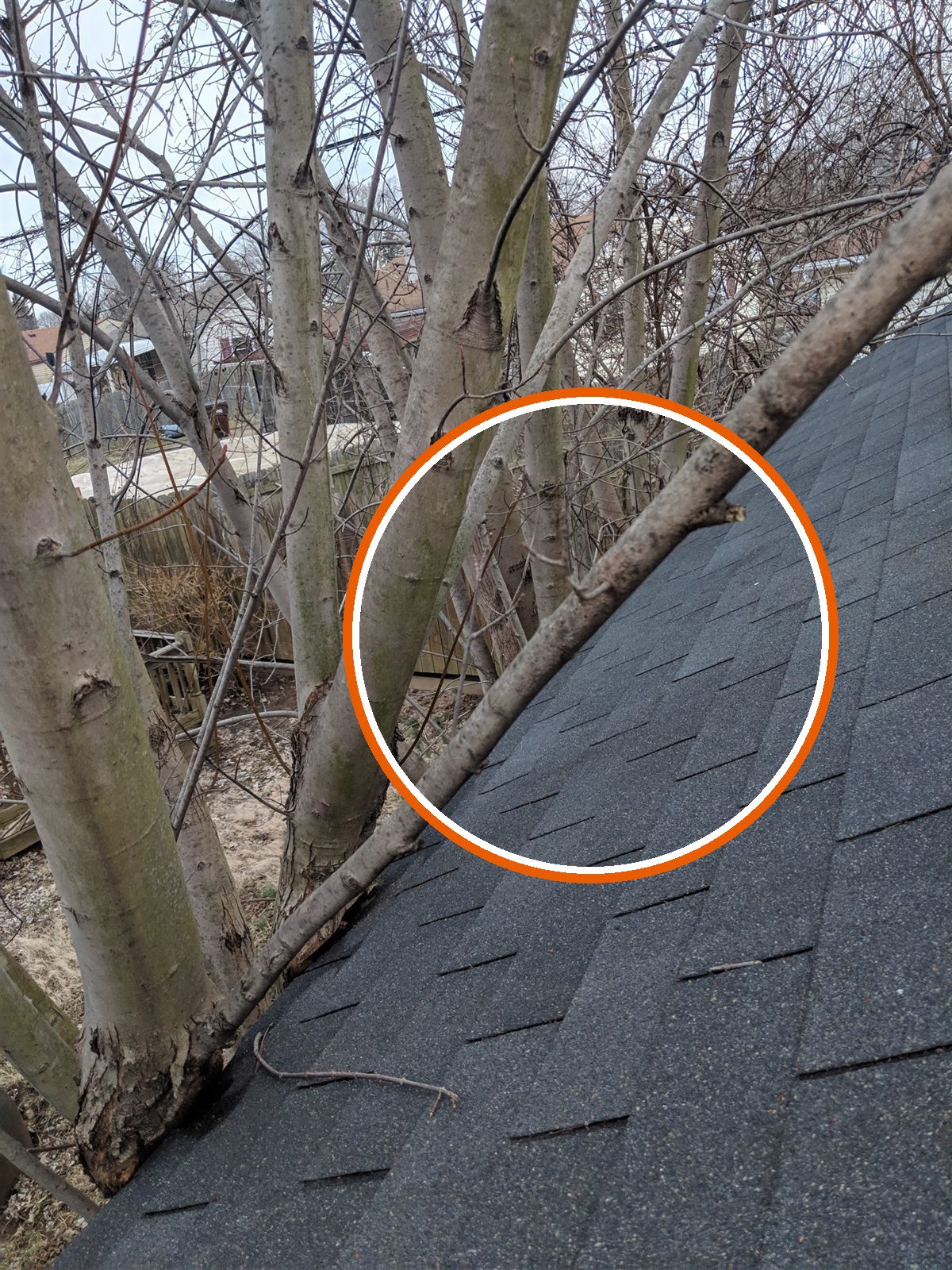

Tree trunks and limbs rest on the roof edge and lie across the shingles.
Limbs scrape off granules, hold debris and moisture on the roof, and give animals a path in.
Hire a tree service to cut the limbs well back from the roof, then have a roofer check the shingles underneath.

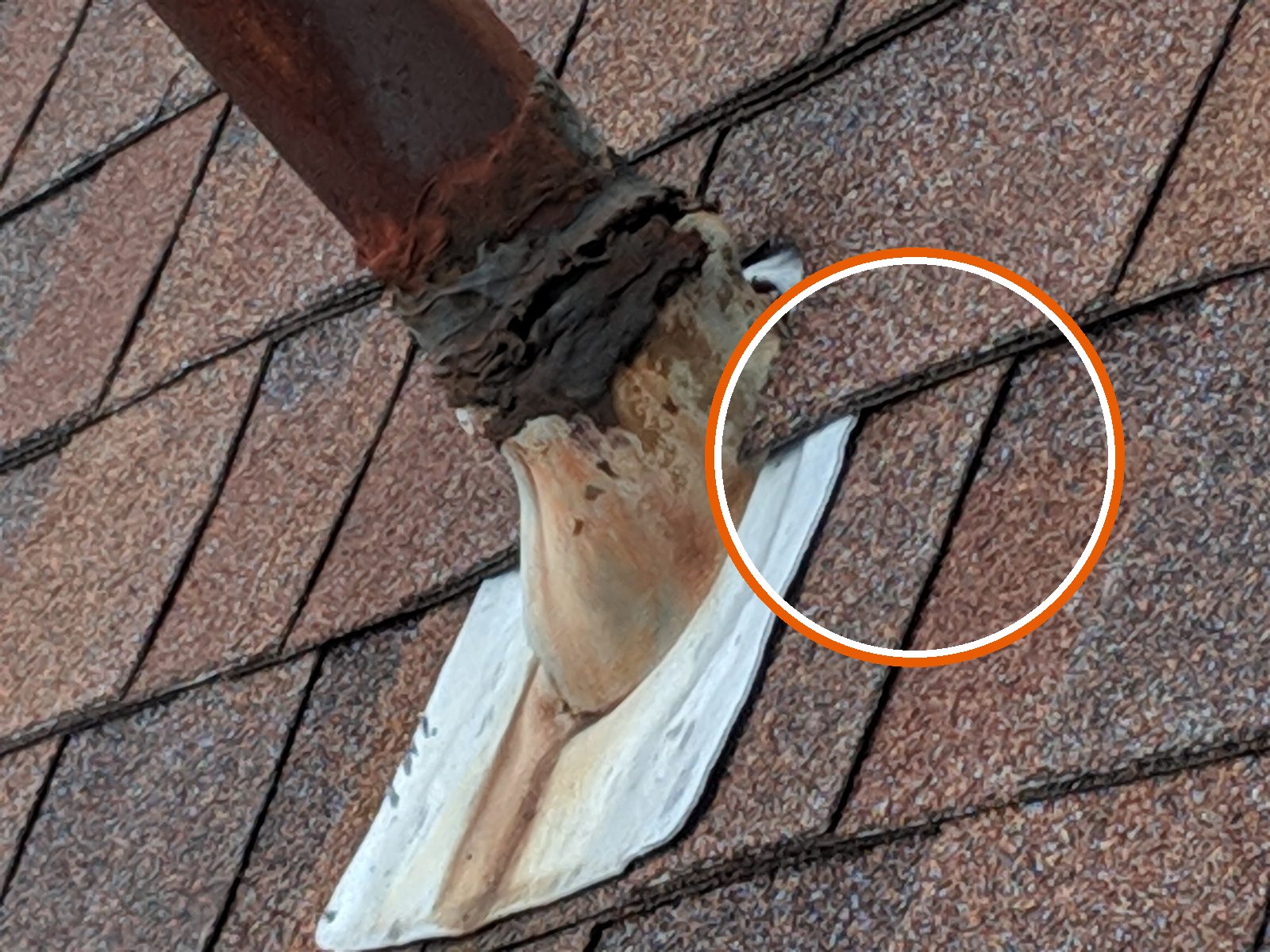

The metal plumbing vent pipe is rusted through its surface, and the flashing boot around it is smeared with tar that has cracked.
Rust and cracked tar where the pipe goes through the roof can let water into the attic.
Hire a roofer, with a plumber if the pipe needs a new section, to replace the vent pipe stub and install a new boot.
You can handle these

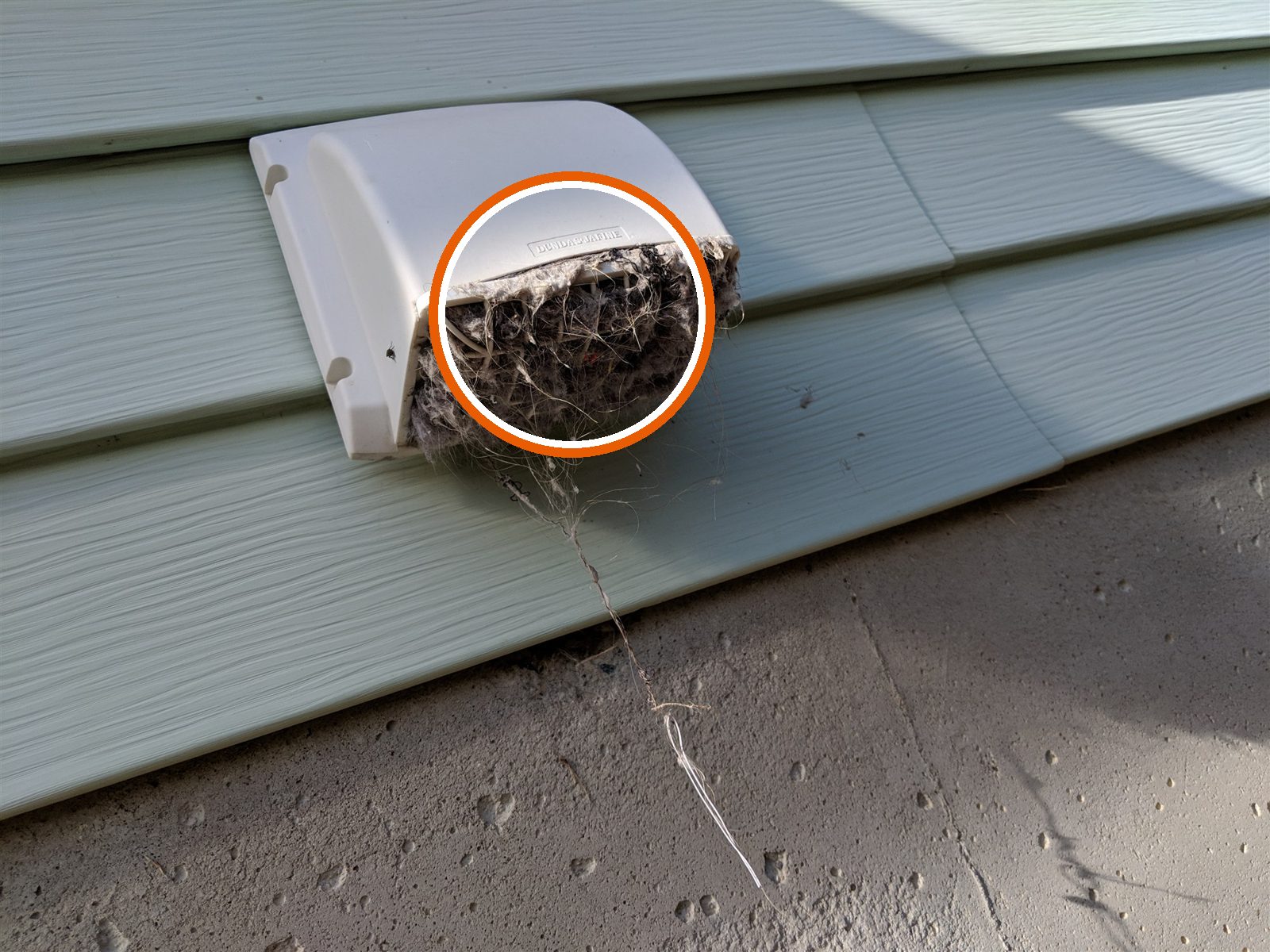

The outside dryer vent hood is stuffed with lint, and the flap can't open.
A blocked dryer vent is a fire risk and makes the dryer run longer.
DIY: pull the lint out of the hood by hand, then run a dryer-vent brush kit (hardware store) through the duct. Clean the lint screen every load.
The machines
Each age below says where it came from.
Heats the house.
Cools the house.
Hot water for the house. The rusted galvanized pipe is a separate Hire a Pro item.
Feeds every circuit in the house. The open wire splices are a separate Hire a Pro item.
Shown so you can find the shutoff.

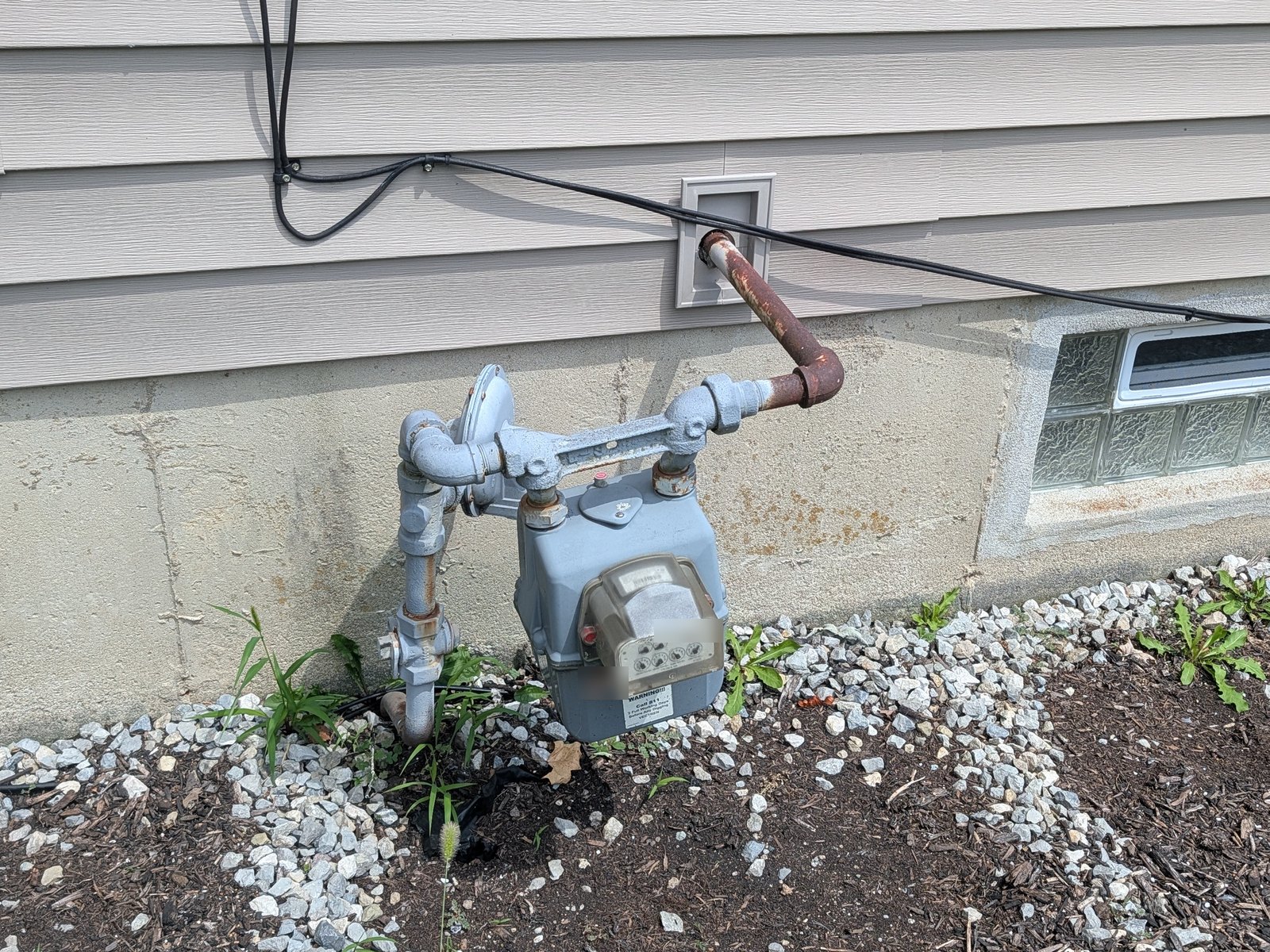

Shown so you can find the meter shutoff.
Nameplate inventory only. Not a warranty claim and not a promise of remaining life.

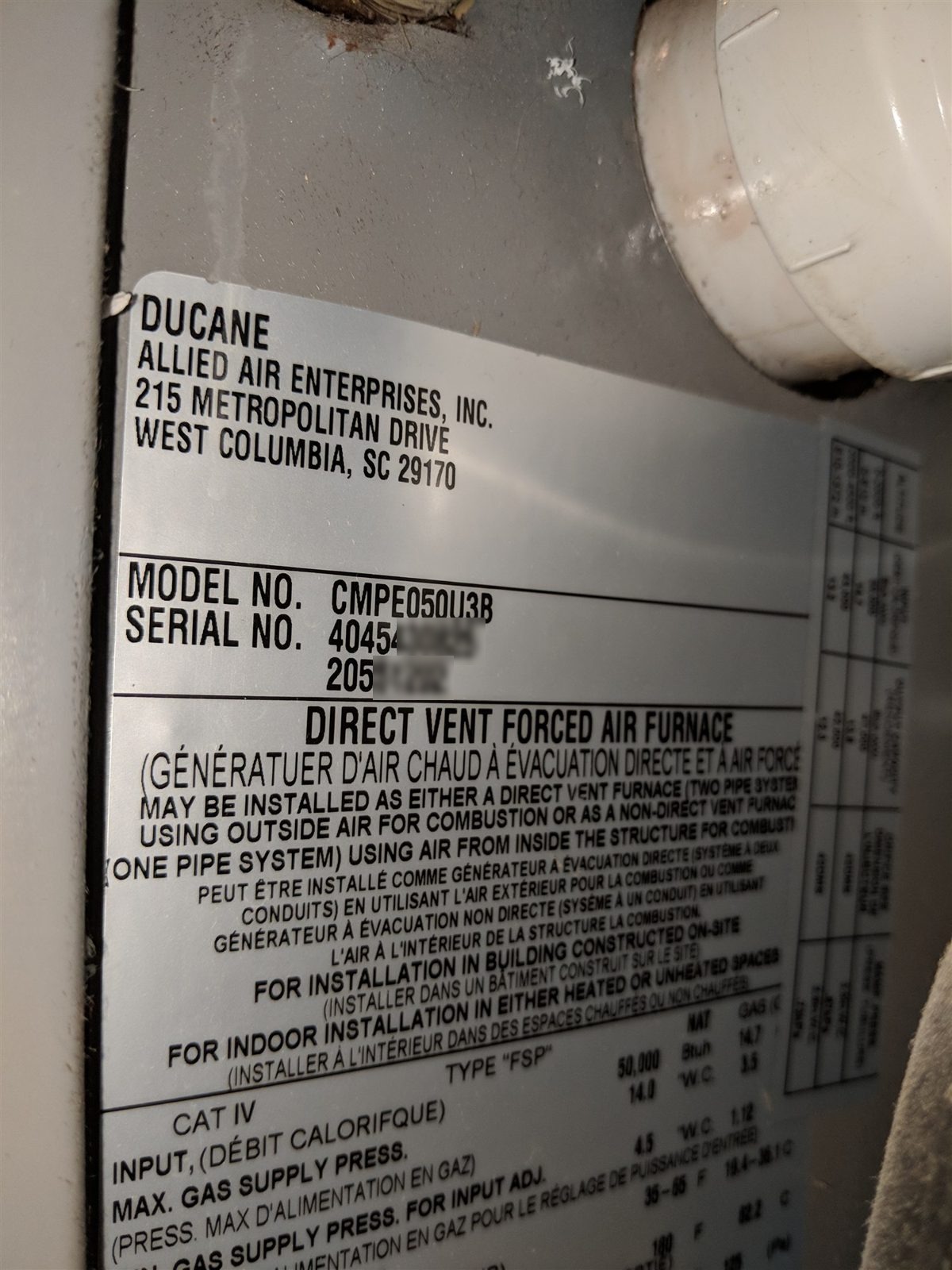

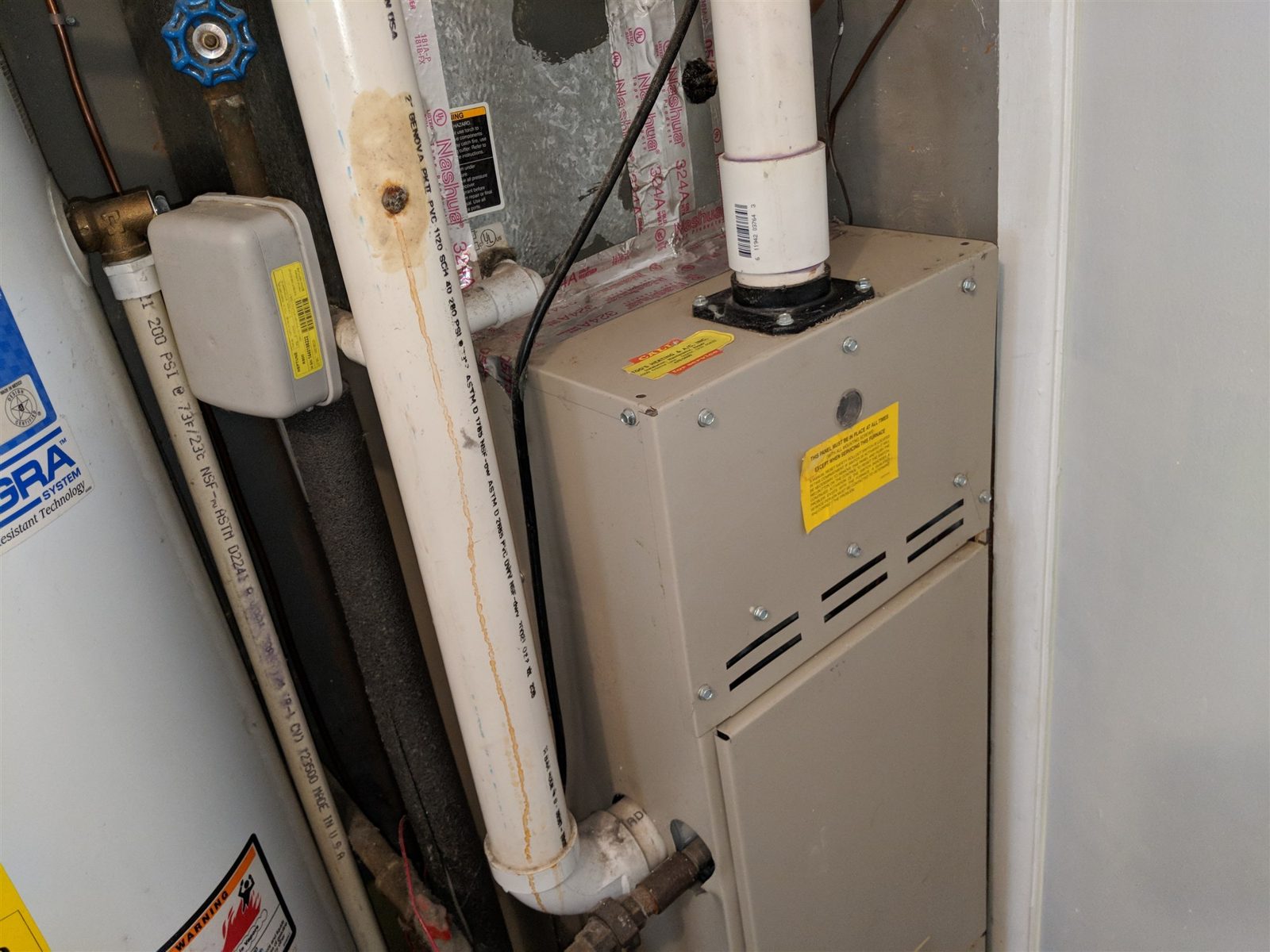

Gas furnace, direct vent, forced air. Make: Ducane (Allied Air Enterprises). Model: CMPE050U3B. Serial: 4045430•••. Size: 50,000 BTU per hour input (plate).
About 0 to 7 years left on a typical 15 to 25 year range (age from an unverified serial decode).
Noted. Serial number dates it to 2008 (unverified decode). About 18 years old.

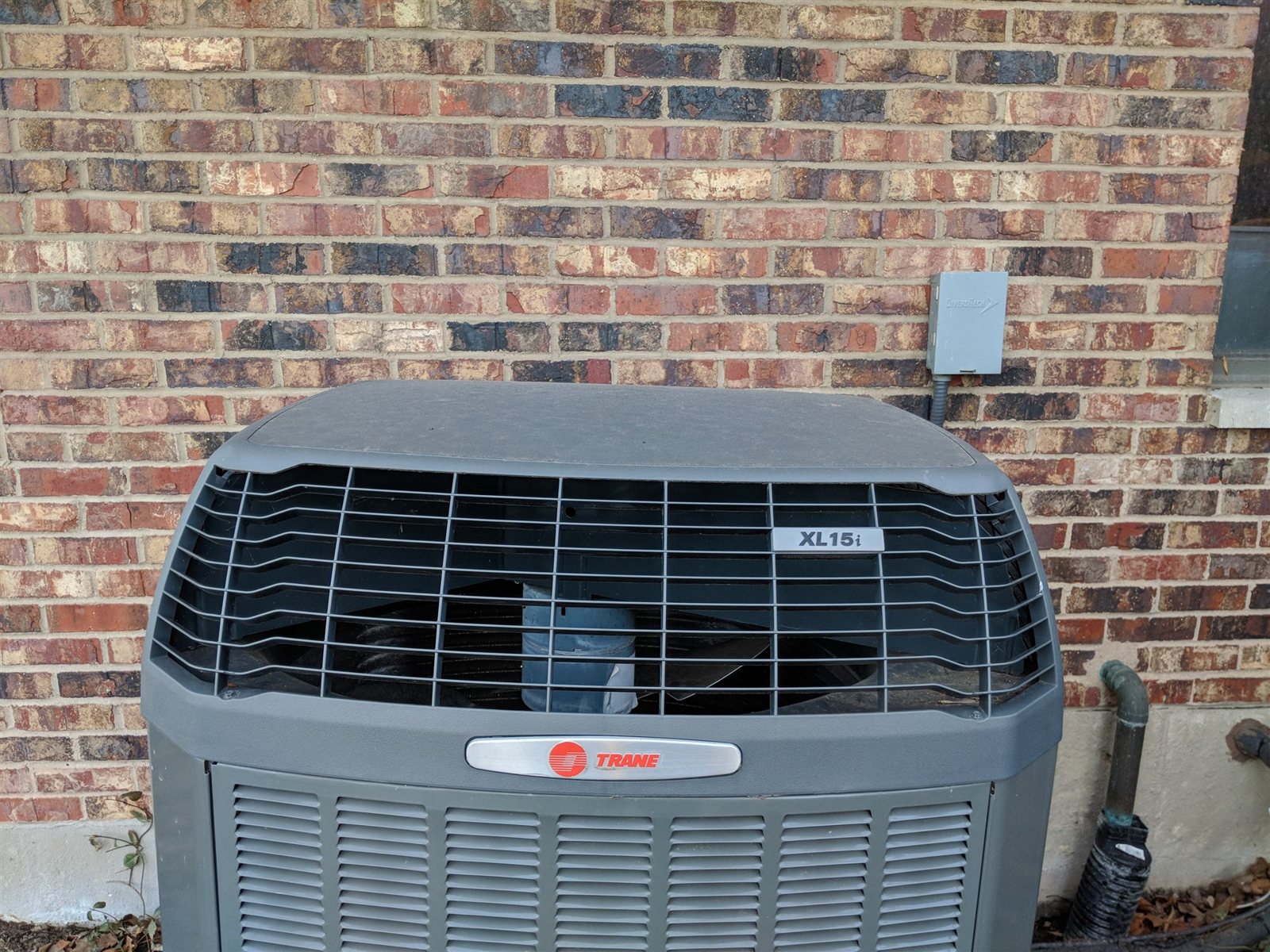

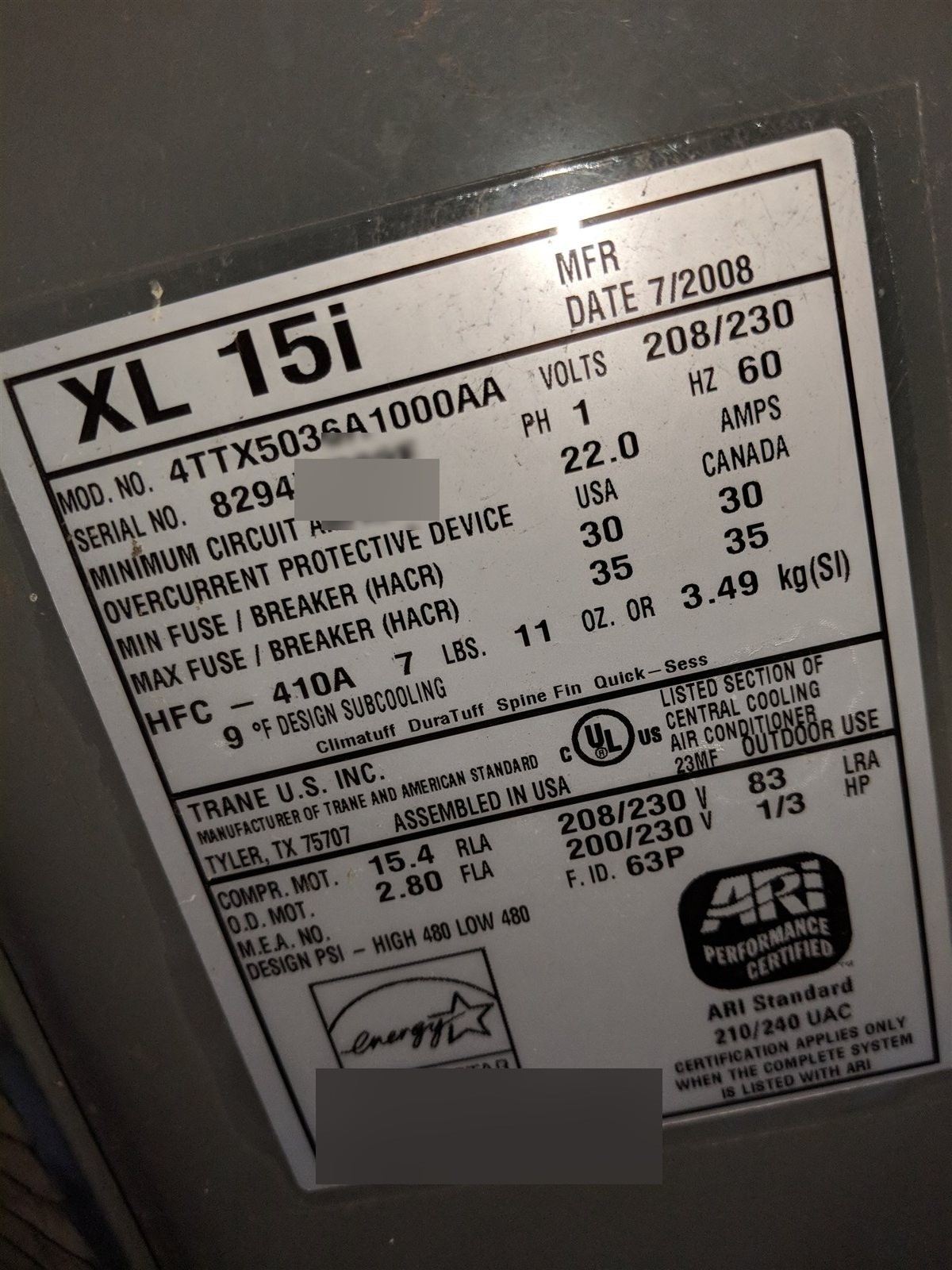

Central air conditioner, outdoor condensing unit. Make: Trane. Model: 4TTX5036A1000AA (XL15i). Serial: 8294WP•••. Size: model code suggests 3 tons (unverified); plate: MCA 22.0 A (minimum circuit amps: the smallest circuit the label calls for), max breaker 35 A.
Past the typical 7 to 15 year range.
Noted. Data plate dates it to 2008. About 18 years old.
Tank water heater, atmospheric vent. Make: Richmond (Rheem Manufacturing Co.). Model: 6G40-36F1. Serial: RMLN0310412•••. Size: 40 gallons; 36,000 BTU per hour input (plate).
Past the typical 6 to 12 year range.
Noted. Data plate dates it to 2010. About 16 years old. The rusted galvanized pipe is a separate Hire a Pro item.

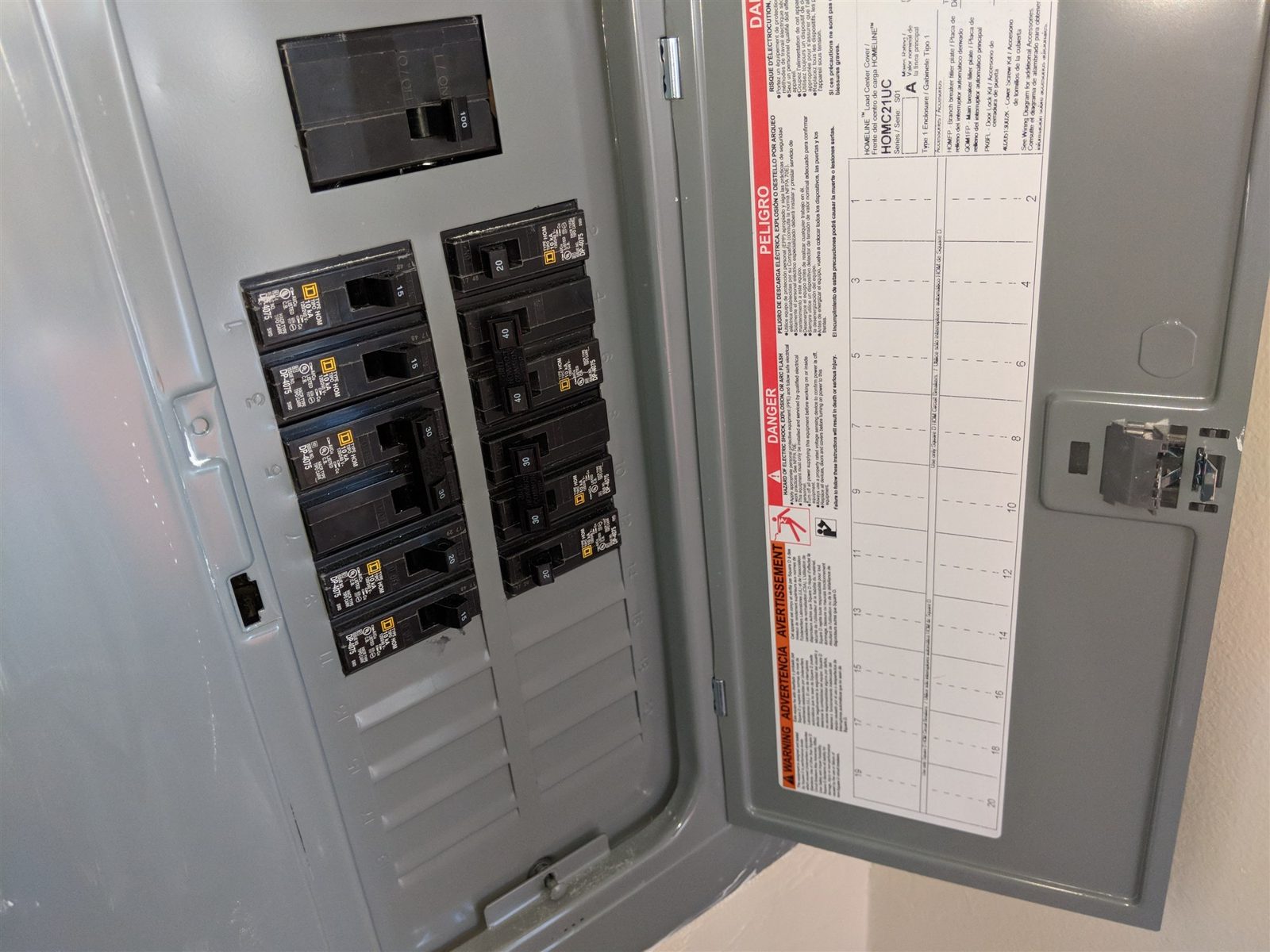

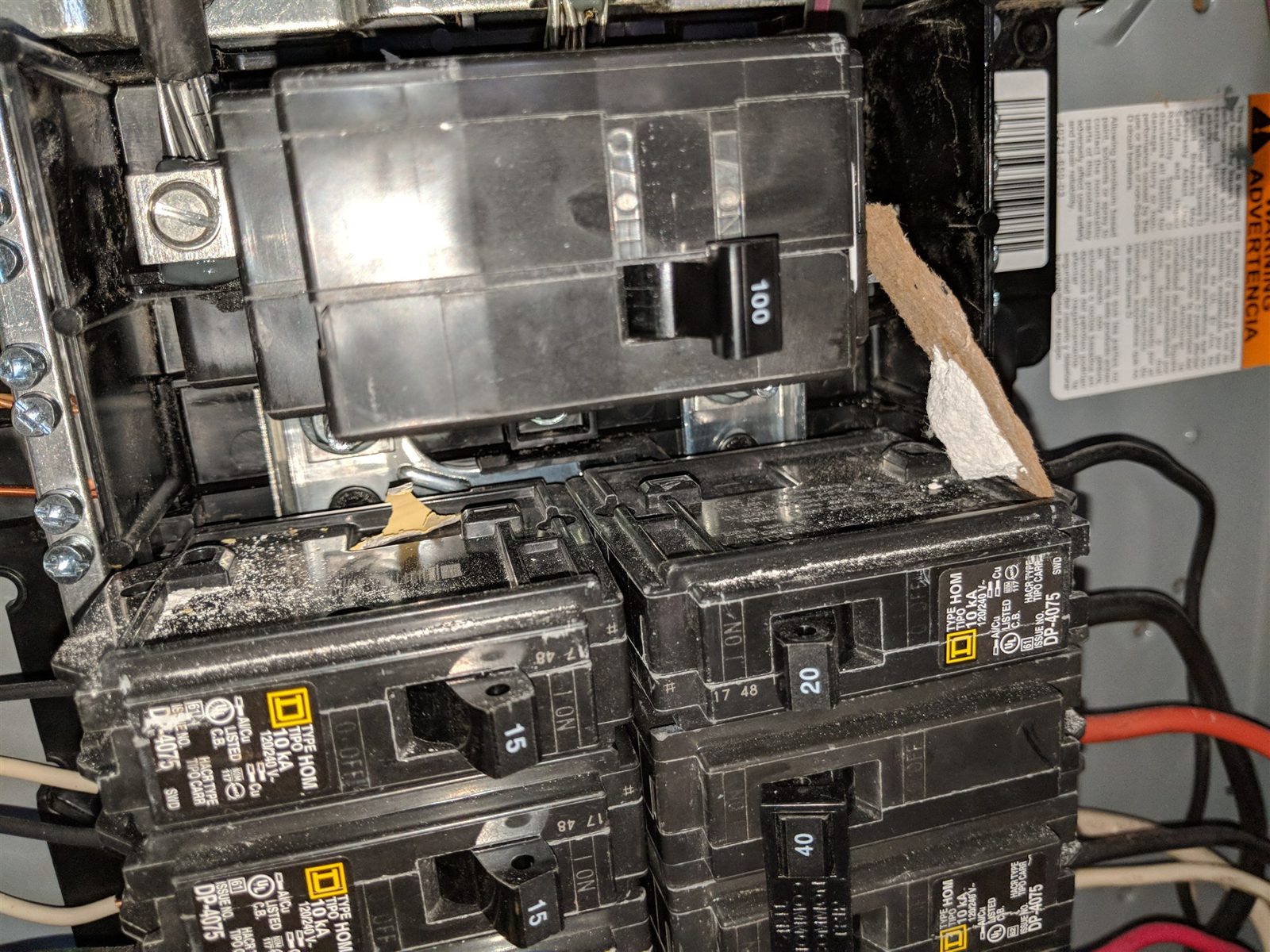

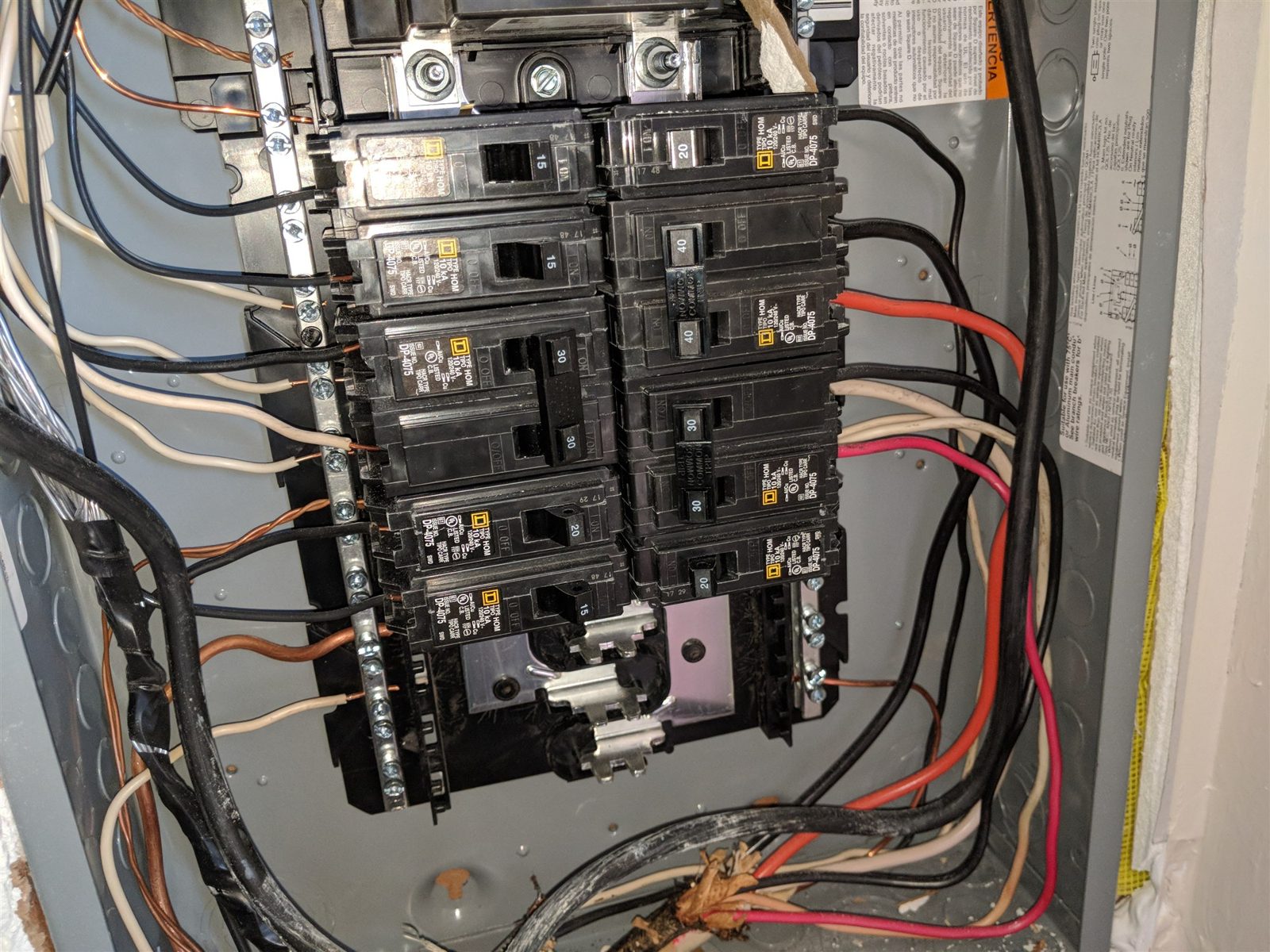

Main breaker panel, circuit breakers. Make: Square D Homeline. Model: HOMC21UC (door label). Serial: none on the label. Main breaker handle reads 100 amps.
Noted. No manufacture date on the label in these photos, so age is not determined. The open wire splices are a separate Hire a Pro item.
Covering Material: Asphalt shingles · Roof Age: Not estimated. No photo in this set shows a dated label, permit or receipt, and worn granules alone do not date a roof. Ask the seller for the roofing invoice · Inspection Method: Viewed from the roof edge and the ground
Wall Covering Material: Brick on the front (cover photo); vinyl siding on the walls in the finding photos
Foundation Type: Basement · Floor Structure: Not verified. Floor framing is not in the walk photos, and hidden conditions behind finishes are outside this visual walk · Wall Structure: Concealed by finishes · Ceiling Structure: Concealed by finishes · Roof Structure: Wood rafters and sheathing
Energy Source: Natural gas · Method Or System Type: Gas furnace, direct vent, forced air · Thermostat Location: Not inspected: no photo of the thermostat in the photos, so its location is not recorded. · Approximate Age: Data plate dates it to 2008.
Energy Source: Electric, 208/230 V, 1 phase · Method Or System Type: Central air conditioner, outdoor condensing unit · Approximate Age: Data plate dates it to 2008.
Water Supply Public Or Private: Public: water meter at the main (photo under Data plates and ages) · Supply Piping Materials: Copper and galvanized steel · Drain, waste, vent Piping Materials: Not inspected: no photo of the interior drain, waste and vent piping in the photos, so its material is not recorded. Buried drain lines are outside a visual walk. · Main Water Shutoff Location: Valve beside the water meter (photo) · Main Fuel Shutoff Location: At the gas meter (photo). Interior shut-off: not inspected; not in the photos
Energy Source: Natural gas · Type: Tank water heater, atmospheric vent · Approximate Age: Data plate dates it to 2010.
Service Amperage: 100-amp main breaker (handle reads 100) · Main Disconnect Location: Main breaker in the main panel (handle reads 100 amps) · Subpanel Locations: None seen · Branch Wiring Method: NM cable (plastic-sheathed cable) · Smoke Alarms Presence: Present on the hall ceiling (photo above). Alarms were not tested · CO Alarms Presence: Not inspected: no carbon monoxide (CO) alarm photo in the photos, so presence or absence is not recorded. Confirm a working CO alarm on every level before move-in.
Type: Masonry chimney; flue interior not inspected
Attic Inspection Method: Viewed from the attic access · Insulation Type: Loose fill · Approximate Depth Attic: Not inspected: depth was not measured in the photos · Ventilation Type: Not inspected: attic vents are not in the photos
Method: Representative doors and windows operated
Door Operation: Not tested. Check that the door reverses when something blocks it
Primary List: Not inspected: kitchen appliances were not in the photos.
Age, settlement & leftovers

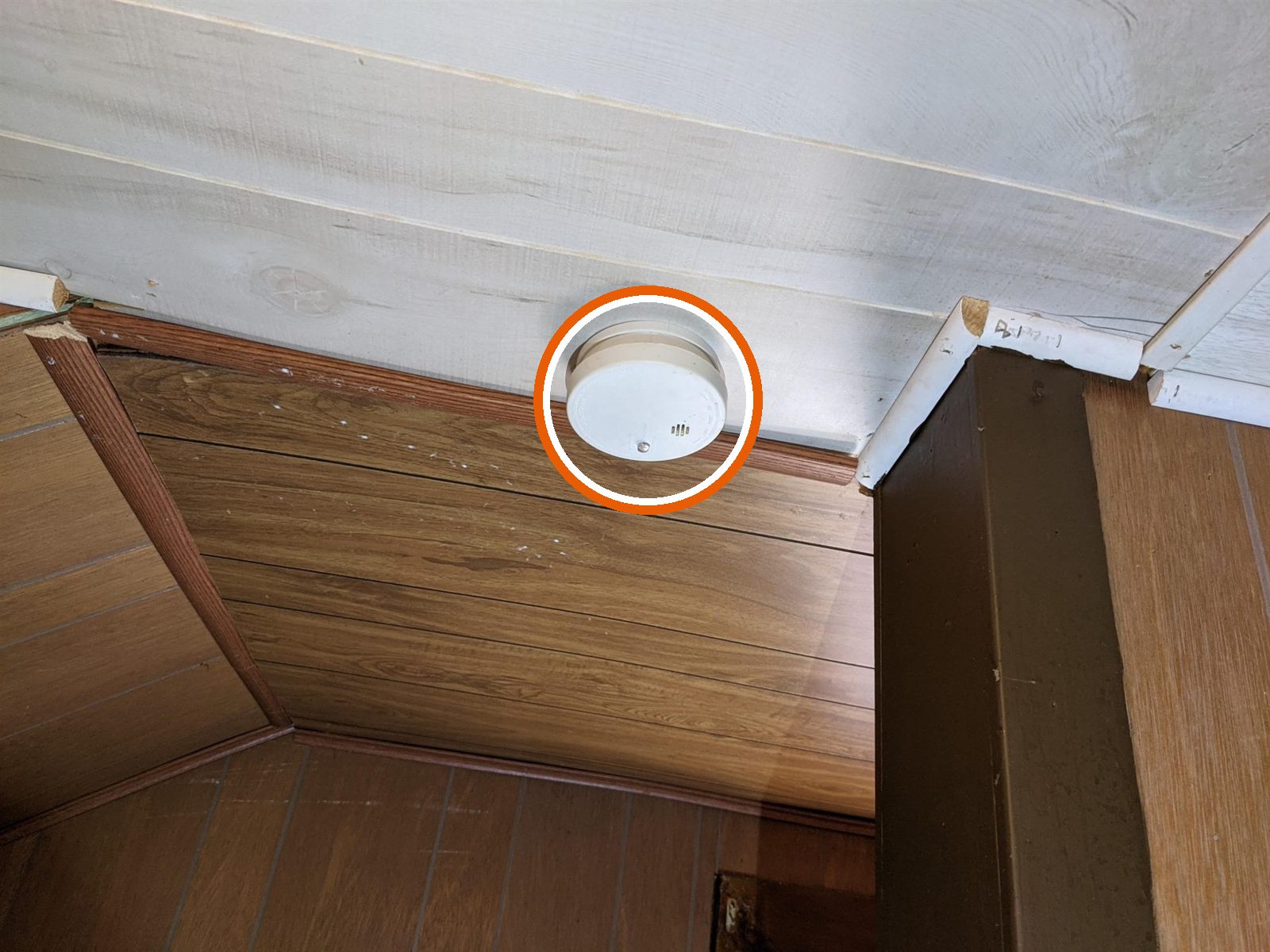

A smoke alarm is mounted on the hall ceiling. It wasn’t tested.
Noted. Test it the day you move in.
Ask the seller for receipts, permits and service records for the roof, furnace, AC and water heater.
Noted. This is a due-diligence ask, not a code finding.
It’s not too late
A camera look is the only way to see roots, breaks or sags in the buried drain line.
Radon can’t be seen or smelled. A short test gives you the number.
Not looked at. A chimney sweep can run a camera through it (a "Level II" inspection) before your first fire.
Not this walk
Roof install date. No permit or date to verify, so roof age is not estimated.
Attic beyond the access opening. Viewed from the opening only. The share of the attic seen was not recorded for this sample, and the eaves were not visible.
Inside the chimney flue. Not looked at. A chimney sweep can run a camera through it (a "Level II" inspection) before your first fire.
Inside the furnace. It stays closed on a visual walk. An HVAC tech checks it during a service.
Air conditioner output. Plate documented under the machines. Cooling output was not measured.
Water heater pressure-relief pipe. This pipe (the TPR, or temperature and pressure relief, discharge pipe) carries scalding water away if the tank overheats. Where it ends was not traced. A plumber can confirm it is routed safely.
Kitchen and bath outlets. A GFCI (a shock-protection outlet with Test and Reset buttons that cuts power fast if current leaks through water or a person) protects wet areas. These were not tested. Press Test, then Reset, on each one after you move in.
Smoke and carbon monoxide alarms. A smoke alarm is present on the hall ceiling. Alarms were not tested. no carbon monoxide (CO) alarm photo in the photos, so presence or absence is not recorded. Confirm a working CO alarm on every level before move-in.
Wall insulation. Finished walls hide it, so the amount of insulation, or whether there is any, is unknown.
Buried water, gas and sewer lines. Not visible. Underground pipes are not dug up on a visual walk. See sewer scope above.
Termites and other wood-eating insects. A full pest inspection was not part of this walk.
Garage door auto-reverse and photo-eye safety. Not tested on this walk. Check that the door reverses when something blocks it.
Behind finishes, furniture and storage. Not moved or opened. Concealed conditions are outside a visual walk.
Thermostat. no photo of the thermostat in the photos, so its location is not recorded.
Interior drain, waste and vent piping. no photo of the interior drain, waste and vent piping in the photos, so its material is not recorded. Buried drain lines are outside a visual walk.
Kitchen appliances. kitchen appliances were not in the photos.
